Hameg 203-7 Oscilloscope: A Retrospective Review

Hameg 203-7 Oscilloscope: A Retrospective  Review

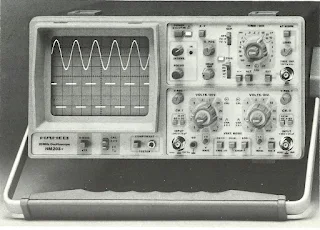

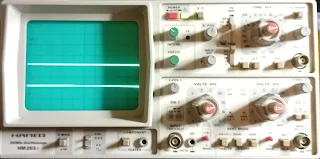

The Hameg 203-7 oscilloscope stands as a flagship instrument in Western Europe, earning its reputation as the best-selling oscilloscope in the region. Designed to meet and exceed customer demands for reliability, superior performance, and ease of operation, the HM203-7 is a versatile tool that caters to a broad spectrum of users.

Technical Specifications:

Frequency Capability:The oscilloscope boasts a standard 20 MHz bandwidth, making it well-suited for a diverse range of electronic applications.



Channels:With 2 channels, users can simultaneously monitor and analyze different signals, providing flexibility in signal comparison and synchronization.

Sensitivity:Offering maximum sensitivity of 1 mV per division, the HM203-7 ensures that even the most delicate signals are accurately captured and displayed.

Timebase:The timebase ranges from 0.1 s/div to 20 ns/div, allowing users to precisely analyze signals across a wide spectrum of frequencies.

Special Features:

Component Tester:A built-in component tester facilitates the quick identification of faulty semiconductors and various components, both in and out of the circuit.

Variable Holdoff:The variable holdoff control enables the solid display of complex asynchronous waveforms.

Alternate Triggering:This mode allows the simultaneous display of two asynchronous signals, enhancing the oscilloscope's versatility.

Triggering Capabilities:The oscilloscope excels in triggering performance, with technically advanced circuits enabling clear and stable displays from DC to an impressive 40 MHz. The Trigger LED serves as a visual indicator, illuminating whenever the trigger threshold point is crossed.

Video Signal Display:For video signals, the HM 203-7 includes a low distortion active TV sync separator, ensuring automatic synchronization with line and fine frequencies. This feature contributes to a seamless display of video signals.

CRT Features:The oscilloscope's CRT (Cathode Ray Tube) comes equipped with a Bx10cm internal graticule, enhancing parallax-free viewing over a wide field. Additionally, the CRT is fully shielded with mumetal to prevent display distortion in the presence of magnetic fields.

Quality and Engineering Excellence:

The Hameg 203-7 stands out for its outstanding transient response, particularly when displaying square wave signals. The integrity of signals reproduced by this oscilloscope reflects a dedication to engineering excellence that is typically associated with more expensive laboratory instruments.

Practical Applications:

The HM 203-7 was purposefully designed to cater to a variety of practical applications, including use in production lines, general service applications, and technical training facilities. The oscilloscope's multiplicity of display modes, easy-to-understand front panel, and operational simplicity make it an ideal training scope for educational purposes.

Conclusion:

In conclusion, the Hameg 203-7 oscilloscope embodies a perfect blend of performance, reliability, and user-friendly design. Its technical prowess, advanced features, and practical applications make it a preferred choice for professionals, enthusiasts, and educational institutions alike. Whether you're working in production, service, or education, the Hameg 203-7 stands as a testament to excellence in the world of oscilloscopes.
